The Duetto Hardtop

The Hardtop is put in position by sliding it forward so the rear end is fixed under the rear scuttle trim with hardtop fixing between the boot lid and the rear of the soft top. It should be a one man job. Thanks to Dan Walker AlfaBB

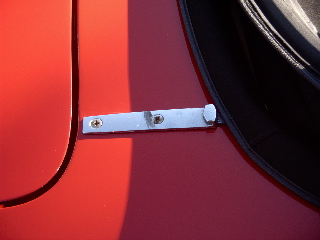

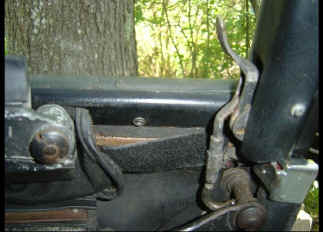

Rear scuttle trim with hardtop fixing

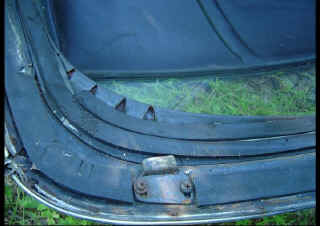

The bracket on the Hardtop

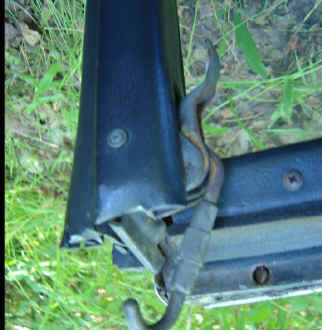

The hook on the Hardtop

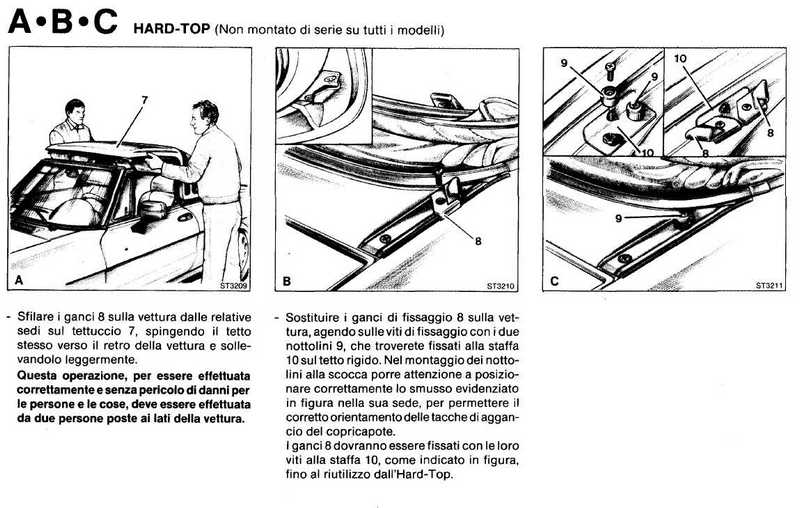

How to fix it in position

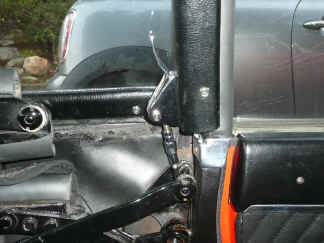

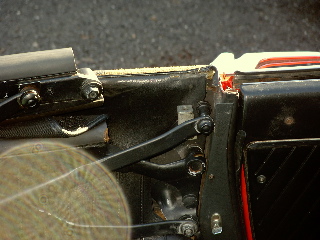

This is where to hook it to the softtop frame support

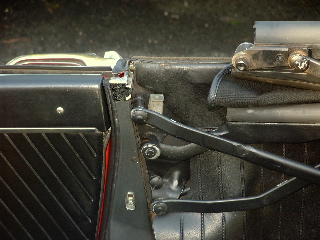

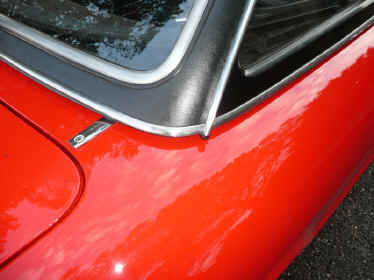

This should do it

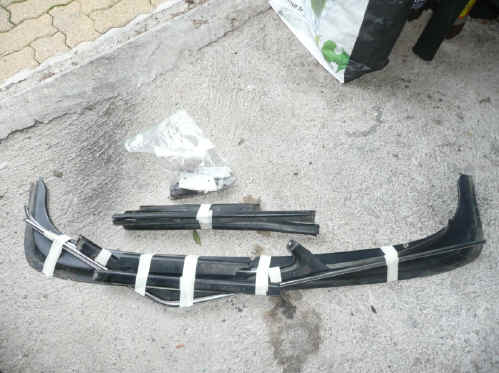

The seals of the Hardtop

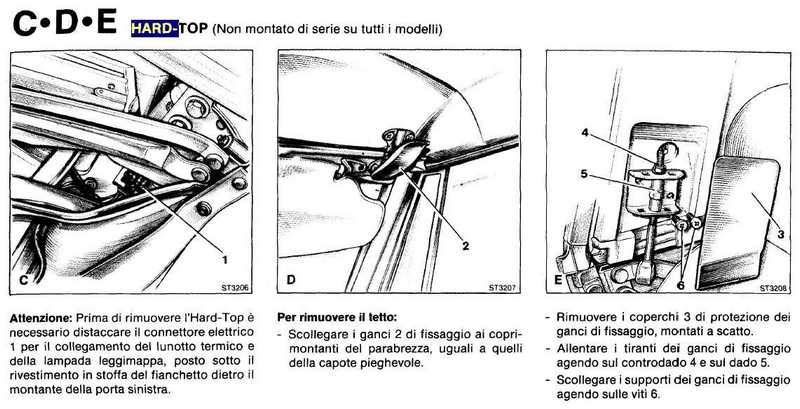

Click to enlarge

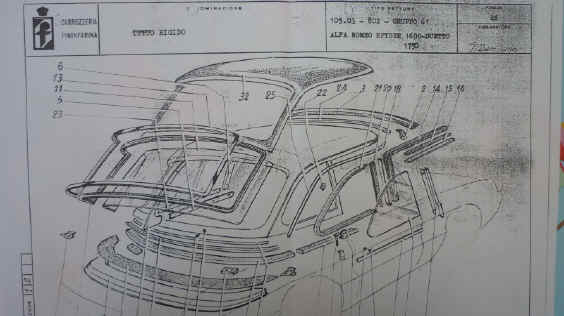

The complete factory manual. Click to enlarge


Oh, we also have an E-mail Duetto top support. Just send an E-mail.

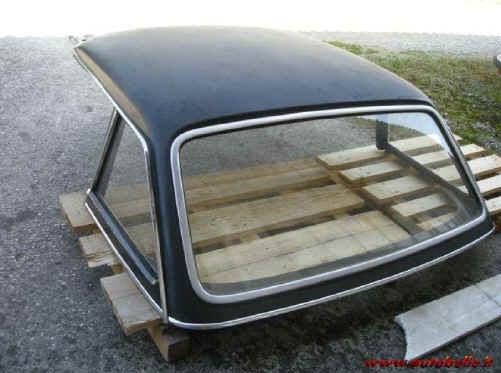

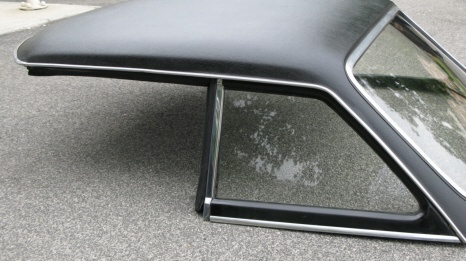

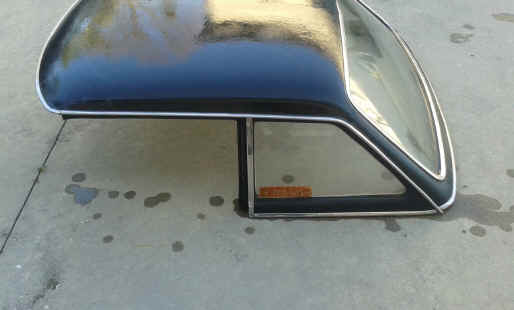

More Hardtop photos
